Smart thermostat for universal control over:

  • Heating systems
  • Cooling systems
  • Hot water systems
  • Humidifiers
  • Dehumidifiers

PS Thermo allows you to control up to 4 systems. Install additional relays and wireless sensors and enjoy the most affordable solution for perfect climate in every room. Set your desired room temperature as well as humidity level. Control it online or offline. Select your desired user mode, language preference as well as sound level.

Features

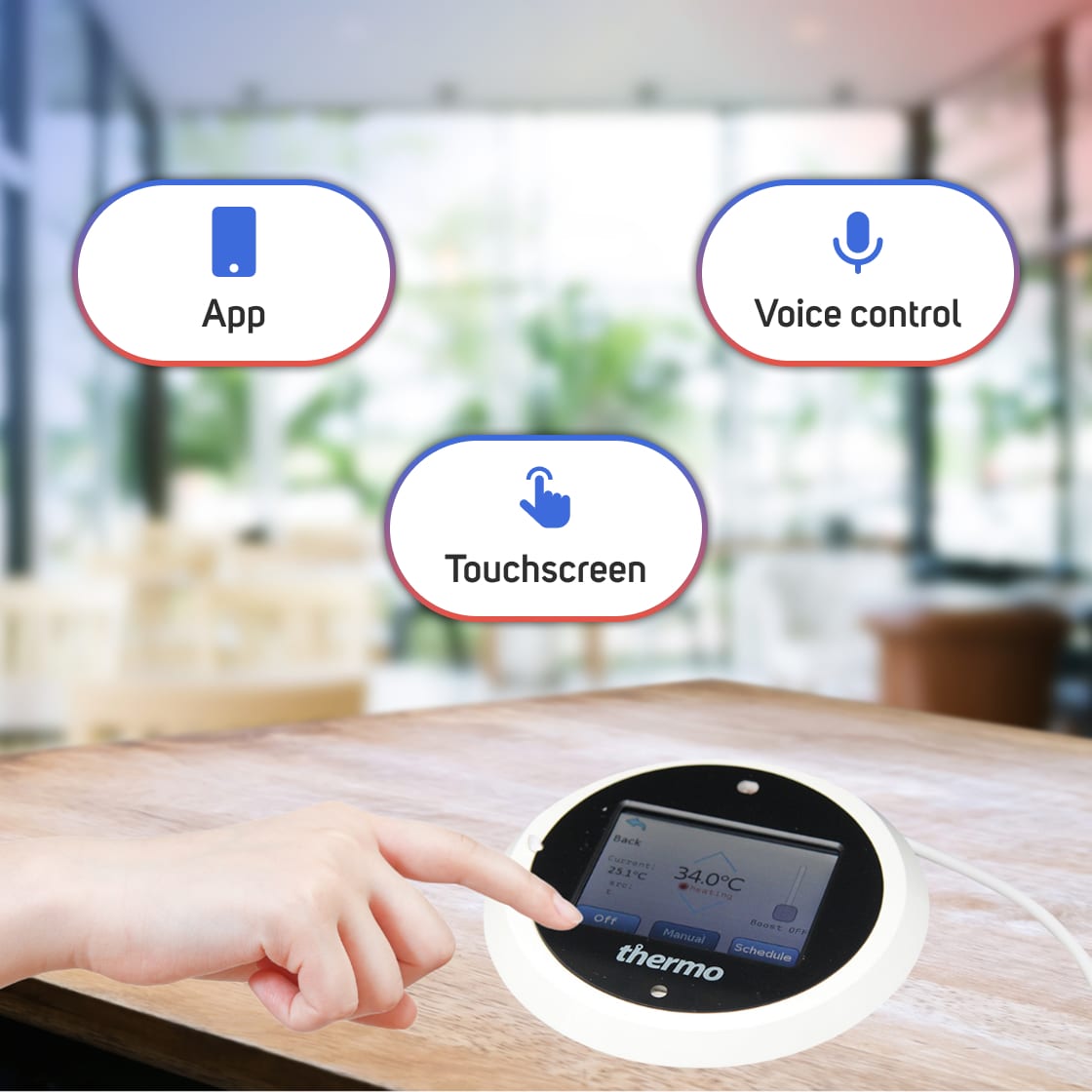

Touch screen to control your home with a single click

Easy and reliable remote control anywhere, anytime

Real-time information about temperatures, humidity and system status

Weekly or monthly schedules and pre-set scenarios – Vacation, Work week, I'll be home late, etc.

Alerts you when extreme temperature or humidity changes are detected

Heating and cooling mode

Easy and fast setup. Connects directly to the Wi-Fi

Insightful charts about past temperatures and humidity levels in each room

PS Thermo offers wide choice of user modes. Select to control your system by measured onboard temperature or humidity, relay temperature, remote temperature or humidity.



Not sure what happens when there is no network?

PS Thermo can manage your system even without Wi-Fi network. Choose your desired temperature and user mode directly from the touchscreen control panel and give yourself the comfort you deserve.

Specifications

  • Touch screen voltage: 5V ⎓ 1А
  • Touch screen size: 4,9 х 3,7 мм (WxH)
  • Touch screen plastic box size: 30,0 х 98,0 х 36,0 мм (LxWxH)
  • Operating temperature: 0° — +45°C
  • Relay module – Switching socket: Max. 230V~; 16 А (4A inductive load)
  • Relay module - working frequency: 433 MHz
  • Relay module - range: Min. 100m of empty space
  • Required Wi-Fi frequency: 2.4 GHz
  • Network topology: Wireless communication
  • Protection degree, provided by the sheath: IP20 - at installation position
User manual
